double tank ultrasonic cleaner with filtration and drying

Double slot filtration drying ultrasonic cleaner

Large industrial ultrasonic cleaner

Product Features:

1. Drying tank: can be adjusted autonomously, time and temperature, with drying completion alarm notification function;

2, the inner tank material: the use of 304 stainless steel, thickened to 2mm, manual argon welding, strong and durable;

3. Adjustable time: 1-99 minutes/hour adjustable, can be opened often;

4. Memory function: the device has an independent memory chip, and there is no need to reset after the time is set;

5, equipment power cord: the use of industrial thickened power cord, safe and durable;

6, industrial grade transducer: the use of industrial shockhead, strong force and good effect, can work 24 hours uninterrupted;

7, filtration circulation function: circulation is conducive to solvent, cost saving, cleaning effect is good;

8. Generator control system: independent generator control system, flexible control, ultrasonic power can be adjusted according to user cleaning needs;

9. Heating automatic constant temperature system: 20-95 degrees adjustable, equipped with stainless steel heating tube, fast heating speed;
This product support non-standard custom, can provide design drawings and cleaning program

Hotline：
+86 15007557067

Online Chat Message

Product Details:

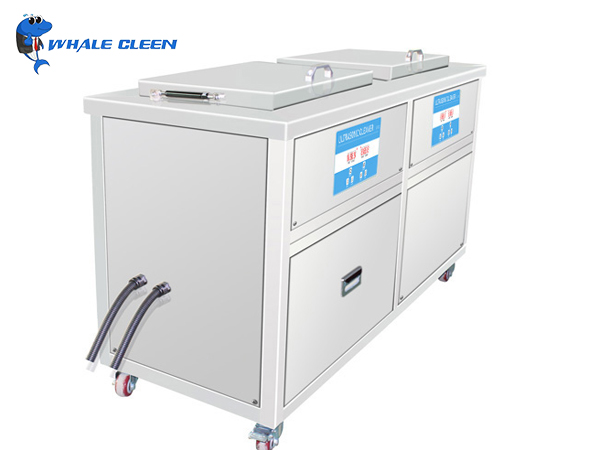

Blue Whale double-slot filtration drying ultrasonic cleaning machine is an ultrasonic cleaning equipment composed of ultrasonic cleaning tank, filter sub-tank and hot air circulation drying tank. It is mainly aimed at the cleaning needs of workpieces that need to be cleaned after dust, oil, rust, wax, glue and other dirt, and need to be dried quickly.

Double slot filtration drying ultrasonic cleaner
Product model	Overflow port	Hot air circulation drying	Inner tank size（mm）	capacity（L）	Transducer	Ultrasonic power（adjustable）	Time control	Heating power	Low level protection	Generator rack
LanJ-J212P1	Standard	Standard	500300250	38L	12pcs	0-600W	1-99H	1.5KW	Standard	Standard
LanJ-J212P2	Standard	Standard	500300300	45L	12pcs	0-600W	1-99H	1.5KW	Standard	Standard
LanJ-J218P1	Standard	Standard	500350300	53L	18pcs	0-900W	1-99H	1.5KW	Standard	Standard
LanJ-J218P2	Standard	Standard	500350350	61L	18pcs	0-900W	1-99H	1.5KW	Standard	Standard
LanJ-J224P1	Standard	Standard	550400350	77L	24pcs	0-1200W	1-99H	3KW	Standard	Standard
LanJ-J224P2	Standard	Standard	550400400	88L	24pcs	0-1200W	1-99H	3KW	Standard	Standard
LanJ-J230P1	Standard	Standard	550450400	99L	30pcs	0-1500W	1-99H	3KW	Standard	Standard
LanJ-J230P2	Standard	Standard	600450400	108L	30pcs	0-1500W	1-99H	3KW	Standard	Standard
LanJ-J230P3	Standard	Standard	800300400	96L	30pcs	0-1500W	1-99H	3KW	Standard	Standard
LanJ-J236P	Standard	Standard	600500450	135L	36pcs	0-1800W	1-99H	4.5KW	Standard	Standard
LanJ-J248P1	Standard	Standard	700500500	175L	48pcs	0-2400W	1-99H	6KW	Standard	Standard
LanJ-J248P2	Standard	Standard	700550500	175L	48pcs	0-2400W	1-99H	6KW	Standard	Standard
LanJ-J260P	Standard	Standard	800600550	264L	60pcs	0-3000W	1-99H	6KW	Standard	Standard
LanJ-J272P	Standard	Standard	1000600600	360L	72pcs	0-3600W	1-99H	9KW	Standard	Standard
LanJ-J290P	Standard	Standard	1000800700	560L	90pcs	0-4500W	1-99H	18KW	Standard	Standard
LanJ-J2108P	Standard	Standard	1000900600	540L	108pcs	0-5400W	1-99H	18KW	Standard	Standard
LanJ-J2144P	Standard	Standard	12001000800	960L	1144pcs	0-7200W	1-99H	24KW	Standard	Standard

Application:

Blue Whale double-slot filtration drying ultrasonic cleaning machine, mainly used in mechanical, electronic, jewelry, optical, pharmaceutical, coating, auto maintenance and vacuum coating pre-treatment and other related categories. For parts with complex surface shapes, such as grooves, slits, blind holes and deep holes on parts, it has an efficient and rapid cleaning effect. At the same time, it can clean off the oil, rust and oxide on the surface of the parts, and realize one-stop cleaning, disinfection and sterilization.

Before Purchase:

1、Determine the model
You can choose model through consultation. You can also understand the specifications and parameters and choose the model through the website. Our company can customize according to customer requirements. Welcome to the factory for inspection.

2、Inquiry
You can use telephone, online chat, messages, e-mail and other ways to get price and delivery term from sales manager.

3、Sign the contract
With product details and payment methods.

4、Payment
Payment will be made in accordance with the terms of the contract. Timely delivery will be arranged after payment.

5、Acceptance
When you receoved the machine, please check whether the outer packaging and goods are damaged. Also check the product model and quantity, as well as accessories. If the above happens, please take photos and contact with the sales staff.

6、After-sales service
1. Provide door-to-door installation and commissioning, technical personnel free guidance training;
2. After receiving feedback, we will give you response within 12 hours. We will come back to you with the solution within 36 hours;
3. We promise warranty for 18 months and provide to life-long maintenance. So you don’t need to worry about the after sales.
