Single tank ultrasonic cleaner with filter

Single-slot filtration circulation ultrasonic cleaner

Large industrial ultrasonic cleaner

Product Features:

1. Circulating filtration system: circulating filtration of liquids, filtering suspended impurities in water;

2. Digital touch: tap the button to operate, digital display time temperature;

3. the temperature is adjustable: room temperature -95 °C constant temperature can be adjusted;

4. Adjustable power: 0-100% power adjustable;

5. Adjustable time: can be opened normally (1-99 hours can be adjusted);

6. Argon welding liner: SUS304 material, 2.0 thickness is more durable;

7. Dirt-resistant shell: Fangtong steel frame door plate snap joint, dirt-resistant, anti-fingerprint stainless steel;

8. 304 sound reduction cover: SUS304 material, dirt-resistant and anti-fingerprint;

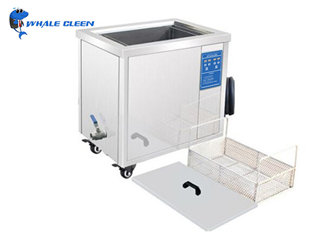

9. Stainless steel basket: SUS304 stainless steel, mesh 10mm, steel bar reinforcement type;

10. the machine power cord: the use of industrial thickened power cord, safe and durable;

11. High-quality casters: the equipment adopts the movable stop wheel design, which is convenient for moving the machine;

12. generator power cord: the use of industrial-grade power cord, triangle grounding plug, anti-static design;

13. Independent R & D drive: independent R & D drive board is adopted, and imported electrical components are stabilized;

14. industrial transducer: the use of industrial shockhead, strong force and good effect, can work 24 hours uninterrupted;

15. All-round heat dissipation: the machine has a cooling fan + multi-vacancy heat dissipation.
This product support non-standard custom, can provide design drawings and cleaning program

Hotline：
+86 15007557067

Online Chat Message

Product Details:

Blue Whale single-slot filtration circulation ultrasonic cleaning machine, equipped with a southern pump to circulate the liquid filtration, can better filter the suspended impurities in the water; recycle the use of cleaning agents, save cleaning agents; filter the dirt of cleaning objects, to prevent secondary pollution, cleanliness is better; filter pipe configuration: all use stainless steel 304 material bright pipe, thickness of 2.5mm. Nozzle welding and polishing method, the pipeline parts to be disassembled are all made of stainless steel quick lock reed, which is beautiful and convenient for disassembly and maintenance.

Single-slot filtration cycle time-regulating temperature modulation power ultrasonic cleaning machine
Product model	Display screen	Temperature	Inner tank size（MM)	Capacity	Transducer	Ultrasonic power（adjustable）	Time control	Heating power	Generator
Z-X121	Digital display	RT-95	500300250MM	38L	12pcs	0-600W	1-99H	1.5KW	External
Z-X122	Digital display	RT-95	500300300MM	45L	12pcs	0-600W	1-99H	1.5KW	External
Z-X181	Digital display	RT-95	500350300MM	53L	18pcs	0-900W	1-99H	1.5KW	External
Z-X182	Digital display	RT-95	500350350MM	61L	18pcs	0-900W	1-99H	1.5KW	External
Z-X241	Digital display	RT-95	550400350MM	77L	24pcs	0-1200W	1-99H	3KW	External
Z-X242	Digital display	RT-95	550400400MM	88L	24pcs	0-1200W	1-99H	3KW	External
Z-X301	Digital display	RT-95	550450400MM	99L	30pcs	0-1500W	1-99H	3KW	External
Z-X302	Digital display	RT-95	600450400MM	108L	30pcs	0-1500W	1-99H	3KW	External
Z-X303	Digital display	RT-95	800300400MM	96L	30pcs	0-1500W	1-99H	3KW	External
Z-X36	Digital display	RT-95	600500450MM	135L	36pcs	0-1800W	1-99H	4.5KW	External
Z-X481	Digital display	RT-95	700500500MM	175L	48pcs	0-2400W	1-99H	6KW	External
Z-X482	Digital display	RT-95	700550500MM	192L	48pcs	0-2400W	1-99H	6KW	External
Z-X60	Digital display	RT-95	800600550MM	264L	60pcs	0-3000W	1-99H	6KW	External
Z-X72	Digital display	RT-95	1000600600MM	360L	72pcs	0-3600W	1-99H	9KW	External
Z-X90	Digital display	RT-95	1000800700MM	560L	90pcs	0-4500W	1-99H	18KW	External
Z-X108	Digital display	RT-95	1000900600MM	540L	108pcs	0-5400W	1-99H	18KW	External
Z-X144	Digital display	RT-95	12001000800MM	960L	1144pcs	0-7200W	1-99H	24KW	External

Application:

Blue Whale single-slot filtration cycle ultrasonic cleaning machine, mainly used in mechanical, electronic, jewelry, optical, pharmaceutical, coating, auto maintenance and vacuum coating pre-treatment and other related categories. For parts with complex surface shapes, such as grooves, slits, blind holes and deep holes on parts, it has an efficient and rapid cleaning effect. At the same time, it can clean off the oil, rust and oxide on the surface of the parts, and realize one-stop cleaning, disinfection and sterilization.

Before Purchase:

1、Determine the model
You can choose model through consultation. You can also understand the specifications and parameters and choose the model through the website. Our company can customize according to customer requirements. Welcome to the factory for inspection.

2、Inquiry
You can use telephone, online chat, messages, e-mail and other ways to get price and delivery term from sales manager.

3、Sign the contract
With product details and payment methods.

4、Payment
Payment will be made in accordance with the terms of the contract. Timely delivery will be arranged after payment.

5、Acceptance
When you receoved the machine, please check whether the outer packaging and goods are damaged. Also check the product model and quantity, as well as accessories. If the above happens, please take photos and contact with the sales staff.

6、After-sales service
1. Provide door-to-door installation and commissioning, technical personnel free guidance training;
2. After receiving feedback, we will give you response within 12 hours. We will come back to you with the solution within 36 hours;
3. We promise warranty for 18 months and provide to life-long maintenance. So you don’t need to worry about the after sales.
