Product Features:
1, drying trough: self-regulation, time and temperature, with drying to complete the alarm notice function;2, inner liner material: using 304 stainless steel, thickened to 2mm, manual argon welding, solid and durable;
3, Time Adjustable: 1-99 minutes/hour adjustable, often open;
4, industrial-grade transducer: industrial head, strong effect, 24 hours uninterrupted work;
5, filter circulation function: circulation is advantageous to the solvent, saves the cost, the cleaning effect is good;
6, the generator control system: independent generator control system, the control is flexible, can be set according to the user cleaning needs to adjust the ultrasonic power;
7, heating automatic thermostatic system: 20-95 degrees adjustable, with stainless steel heating pipe, heating speed;
8, equipment power line: industrial roughing power line, safe and durable;
9, memory function: the device has independent memory chip, no need to reset after time setting;
This product support non-standard custom, can provide design drawings and cleaning program

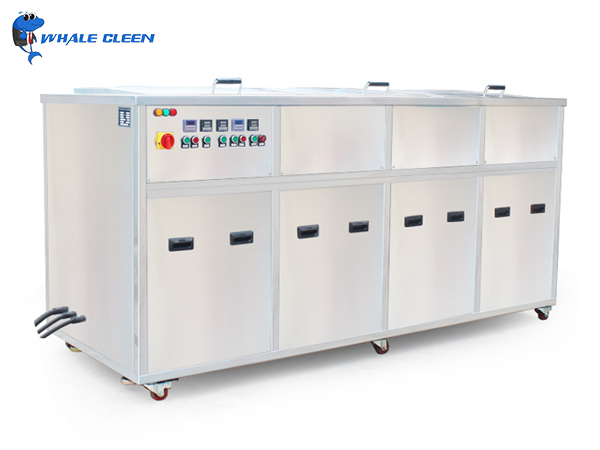

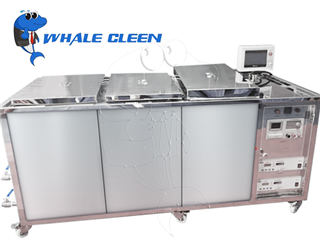

Blue Whale three-slot type with filter rinsing and drying ultrasonic cleaning machine, is the first tank ultrasonic cleaning and filtration cycle, the cleaning of the oil slick, impurities, dust filtered out; the second tank is the rinsing tank, after the cleaning of the first tank, and then washed in the rinsing tank, so that the cleaning material is cleaner; the third tank is the hot air drying tank, after the cleaning of the first two tanks, the three tanks of air drying, so that the cleaning material can be dried quickly. Three-slot type with filter rinsing and drying ultrasonic cleaning machine, mainly for the cleaning needs of workpieces that need to be cleaned after dust, oil, rust, wax, glue and other dirt, and need to be quickly dried.
| Three-slot filtration drying ultrasonic cleaner | ||||||||||||
| Product model | Overflow port | First slot filtration | Second tank rinse | Hot air circulation drying | Inner tank size（mm） | capacity（L） | Transducer | Ultrasonic power（adjustable） | Time control | Heating power | Low level protection | Generator rack |
| LanJ-J312X1 | Standard | Standard | Standard | Standard | 500*300*250 | 38L | 12pcs | 0-600W | 1-99H | 1.5KW | Standard | Standard |
| LanJ-J312X2 | Standard | Standard | Standard | Standard | 500*300*300 | 45L | 12pcs | 0-600W | 1-99H | 1.5KW | Standard | Standard |
| LanJ-J318X1 | Standard | Standard | Standard | Standard | 500*350*300 | 53L | 18pcs | 0-900W | 1-99H | 1.5KW | Standard | Standard |
| LanJ-J318X2 | Standard | Standard | Standard | Standard | 500*350*350 | 61L | 18pcs | 0-900W | 1-99H | 1.5KW | Standard | Standard |
| LanJ-J324X1 | Standard | Standard | Standard | Standard | 550*400*350 | 77L | 24pcs | 0-1200W | 1-99H | 3KW | Standard | Standard |
| LanJ-J324X2 | Standard | Standard | Standard | Standard | 550*400*400 | 88L | 24pcs | 0-1200W | 1-99H | 3KW | Standard | Standard |
| LanJ-J330X1 | Standard | Standard | Standard | Standard | 550*450*400 | 99L | 30pcs | 0-1500W | 1-99H | 3KW | Standard | Standard |
| LanJ-J330X2 | Standard | Standard | Standard | Standard | 600*450*400 | 108L | 30pcs | 0-1500W | 1-99H | 3KW | Standard | Standard |
| LanJ-J330X3 | Standard | Standard | Standard | Standard | 800*300*400 | 96L | 30pcs | 0-1500W | 1-99H | 3KW | Standard | Standard |
| LanJ-J336X | Standard | Standard | Standard | Standard | 600*500*450 | 135L | 36pcs | 0-1800W | 1-99H | 4.5KW | Standard | Standard |
| LanJ-J348X1 | Standard | Standard | Standard | Standard | 700*500*500 | 175L | 48pcs | 0-2400W | 1-99H | 6KW | Standard | Standard |
| LanJ-J348X2 | Standard | Standard | Standard | Standard | 700*550*500 | 192L | 48pcs | 0-2400W | 1-99H | 6KW | Standard | Standard |
| LanJ-J360X | Standard | Standard | Standard | Standard | 800*600*550 | 264L | 60pcs | 0-3000W | 1-99H | 6KW | Standard | Standard |
| LanJ-J372X | Standard | Standard | Standard | Standard | 1000*600*600 | 360L | 72pcs | 0-3600W | 1-99H | 9KW | Standard | Standard |
| LanJ-J390X | Standard | Standard | Standard | Standard | 1000*800*700 | 560L | 90pcs | 0-4500W | 1-99H | 18KW | Standard | Standard |
| LanJ-J3108X | Standard | Standard | Standard | Standard | 1000*900*600 | 540L | 108pcs | 0-5400W | 1-99H | 18KW | Standard | Standard |
| LanJ-J3144X | Standard | Standard | Standard | Standard | 1200*1000*800 | 960L | 1144pcs | 0-7200W | 1-99H | 24KW | Standard | Standard |
1、Determine the model
You can choose model through consultation. You can also understand the specifications and parameters and choose the model through the website. Our company can customize according to customer requirements. Welcome to the factory for inspection.
2、Inquiry
You can use telephone, online chat, messages, e-mail and other ways to get price and delivery term from sales manager.
3、Sign the contract
With product details and payment methods.
4、Payment
Payment will be made in accordance with the terms of the contract. Timely delivery will be arranged after payment.
5、Acceptance
When you receoved the machine, please check whether the outer packaging and goods are damaged. Also check the product model and quantity, as well as accessories. If the above happens, please take photos and contact with the sales staff.
6、After-sales service
1. Provide door-to-door installation and commissioning, technical personnel free guidance training;
2. After receiving feedback, we will give you response within 12 hours. We will come back to you with the solution within 36 hours;
3. We promise warranty for 18 months and provide to life-long maintenance. So you don’t need to worry about the after sales.
