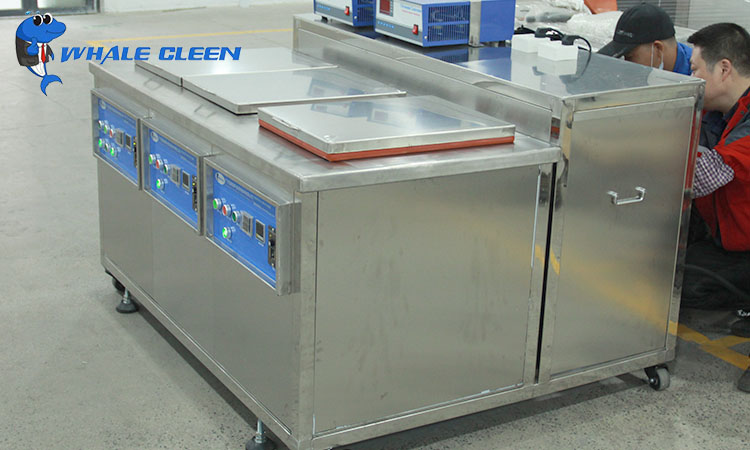

The ultrasonic cleaner is a widely used cleaning device in industries ranging from healthcare to precision engineering. At the heart of this technology lies the ultrasonic transducer, a critical component responsible for converting electrical energy into mechanical vibrations to produce the ultrasonic waves necessary for cleaning. This article delves into the technical aspects of ultrasonic transducers, their functionality, types, and importance in ensuring efficient and reliable cleaning processes.

1. What Is an Ultrasonic Transducer?

An ultrasonic transducer is a device that converts electrical energy into ultrasonic vibrations through the piezoelectric effect or magnetostrictive effect. These vibrations propagate through the cleaning liquid, creating microscopic bubbles that collapse (a process known as cavitation), effectively removing contaminants from surfaces.

• Core Function: The transducer acts as the energy conversion unit, ensuring the generation of consistent and powerful ultrasonic waves.
• Location: Typically mounted at the base or sides of the ultrasonic cleaner tank, directly transferring energy into the cleaning liquid.

2. Working Principle of the Transducer

1. Electrical Energy Input:
   The ultrasonic generator delivers high-frequency electrical signals to the transducer.

2. Energy Conversion via the Piezoelectric Effect:

   • Piezoelectric materials (e.g., quartz or ceramic) deform under an applied electrical field, producing mechanical vibrations.
   • These vibrations oscillate at ultrasonic frequencies, typically ranging from 20 kHz to 120 kHz.

3. Ultrasonic Wave Propagation:

   • The mechanical vibrations are transferred to the cleaning liquid, creating high- and low-pressure zones.
   • Cavitation occurs in the low-pressure zones, generating microscopic bubbles that implode to release intense energy, dislodging contaminants from surfaces.

3. Types of Ultrasonic Transducers

1. Piezoelectric Transducers

   • Most commonly used due to their high efficiency and compact size.
   • Materials: Typically made from lead zirconate titanate (PZT) ceramics.
   • Advantages: High energy conversion efficiency, wide frequency range, and long lifespan.

2. Magnetostrictive Transducers

   • Utilize magnetostrictive materials (e.g., nickel or iron alloys) that change dimensions in response to a magnetic field.
   • Advantages: Higher robustness and durability, especially in industrial applications requiring intense vibrations.
   • Drawbacks: Larger size and higher power consumption compared to piezoelectric transducers.

4. Importance of the Transducer in Ultrasonic Cleaning

1. Key to Cavitation
   The transducer generates the ultrasonic waves required to produce cavitation, the fundamental cleaning mechanism that dislodges dirt and contaminants.

2. Ensuring Uniform Cleaning

   • High-quality transducers provide consistent energy distribution, ensuring that all parts of the object are cleaned uniformly.
   • Poorly designed transducers can lead to uneven cleaning and reduced efficiency.

3. Adaptability to Different Applications
   By varying the transducer frequency and power, ultrasonic cleaners can be tailored to delicate items like medical instruments or robust components like automotive parts.

5. Factors Affecting Transducer Performance

1. Frequency Range

   • Low Frequencies (20-40 kHz): Suitable for heavy-duty cleaning of industrial components with stubborn contaminants.
   • High Frequencies (60-120 kHz): Ideal for precision cleaning of delicate items like semiconductors and jewelry.

2. Power Output

   • Higher power results in more aggressive cavitation but may risk damaging delicate objects.
   • Transducers must balance power for effective cleaning without compromising item integrity.

3. Durability and Maintenance

   • Prolonged exposure to cleaning liquids can degrade transducers. High-quality materials and regular maintenance ensure long-term performance.

6. Applications of Ultrasonic Transducers

1. Healthcare and Medical Devices

   • Cleaning surgical instruments, dental tools, and implants to remove biological contaminants and ensure sterility.

2. Electronics Industry

   • Cleaning circuit boards, sensors, and microchips without damaging delicate components.

3. Automotive and Aerospace

   • Removing grease, oil, and carbon deposits from engine parts and precision components.

4. Laboratories and Research

   • Cleaning glassware and experimental tools to ensure accuracy and eliminate cross-contamination.

7. Advancements and Future Trends

1. Miniaturized Transducers

   • Development of compact transducers for portable ultrasonic cleaners used in consumer electronics and household applications.

2. Smart Transducer Technology

   • Integration of sensors to monitor frequency, power, and temperature, optimizing cleaning performance in real time.

3. Environmentally Friendly Solutions

   • Enhanced transducer designs that work with eco-friendly cleaning liquids to reduce environmental impact.

Conclusion

The ultrasonic transducer is the cornerstone of ultrasonic cleaning technology, enabling efficient and precise cleaning across a wide range of applications. Its ability to convert electrical energy into high-frequency mechanical vibrations ensures effective cavitation and superior cleaning performance. As technology advances, transducers will continue to play a pivotal role in making ultrasonic cleaning more adaptable, efficient, and environmentally friendly. Understanding the principles and functions of this critical component is essential for leveraging the full potential of ultrasonic cleaning systems.
