Optical devices, including lenses, mirrors, and various optical components, are fundamental in numerous industries such as photography, microscopy, and telecommunications. These devices require meticulous maintenance to preserve their functionality and precision. Ultrasonic vibration rods have emerged as a cutting-edge solution for the cleaning and maintenance of optical devices, providing superior results compared to traditional methods.

Understanding Ultrasonic Vibration Rod Technology

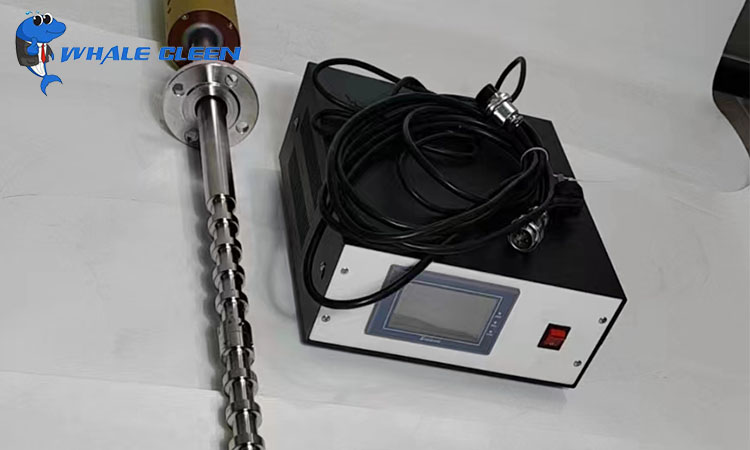

Ultrasonic vibration rods operate on the principle of ultrasonic cleaning, which involves the use of high-frequency sound waves to create microscopic cavitation bubbles in a cleaning solution. These bubbles implode upon contact with the surfaces of optical components, effectively dislodging contaminants without causing any damage. The ultrasonic vibration rod is a specialized tool designed to deliver these high-frequency vibrations directly to the cleaning solution, ensuring consistent and thorough cleaning.

Benefits of Ultrasonic Vibration Rods in Optical Device Maintenance

1. Precision Cleaning:

   • Ultrasonic vibration rods provide an unparalleled level of precision in cleaning optical components. The high-frequency vibrations can penetrate even the tiniest crevices, ensuring that every part of the optical device is free from contaminants.

2. Non-Destructive Cleaning:

   • Traditional cleaning methods, such as brushing or wiping, can introduce scratches or other forms of damage to delicate optical surfaces. Ultrasonic cleaning is non-contact, thereby eliminating the risk of mechanical damage to the components.

3. Efficiency:

   • The ultrasonic cleaning process is significantly faster than manual cleaning. A typical cleaning cycle can be completed in a matter of minutes, making it an efficient solution for maintaining large quantities of optical devices.

4. Environmentally Friendly:

   • Ultrasonic cleaning reduces the need for harsh chemicals. The process primarily relies on water and mild detergents, making it a more environmentally sustainable option compared to chemical-intensive methods.

Applications in Various Optical Devices

1. Lenses:

   • Lenses used in cameras, microscopes, and other optical instruments require impeccable clarity and cleanliness. Ultrasonic vibration rods can remove dust, fingerprints, and other contaminants that can affect image quality.

2. Mirrors:

   • Reflective surfaces, such as those used in telescopes and laser systems, must remain pristine to ensure optimal performance. Ultrasonic cleaning ensures these surfaces remain free from residue and particulate matter.

3. Fiber Optic Components:

   • In telecommunications, fiber optic cables and connectors must maintain high levels of cleanliness to ensure efficient signal transmission. Ultrasonic vibration rods can effectively clean these components without damaging their delicate surfaces.

4. Precision Optics:

   • In scientific research, precision optics such as diffraction gratings and beam splitters require meticulous cleaning. Ultrasonic vibration rods can maintain these components at their highest level of performance.

Implementation in Optical Maintenance Routines

Incorporating ultrasonic vibration rods into optical maintenance routines involves several steps:

1. Preparation:

   • Optical components are carefully placed in a cleaning bath filled with a suitable cleaning solution. The ultrasonic vibration rod is then positioned to ensure even distribution of ultrasonic waves.

2. Cleaning Cycle:

   • The ultrasonic cleaner is activated, and the vibration rod generates high-frequency waves, creating cavitation bubbles that clean the surfaces of the optical components. The duration and intensity of the cleaning cycle can be adjusted based on the level of contamination and the type of optical device.

3. Rinsing and Drying:

   • After the cleaning cycle, the components are thoroughly rinsed with deionized water to remove any remaining detergent residues. They are then dried using methods that avoid introducing new contaminants, such as air drying in a clean room environment.

4. Inspection:

   • Post-cleaning inspection ensures that all contaminants have been effectively removed and that the optical components are free from any damage. This step is crucial for maintaining the quality and performance of the optical devices.

Conclusion

Ultrasonic vibration rods represent a significant advancement in the maintenance and cleaning of optical devices. Their ability to provide precise, non-destructive, and efficient cleaning makes them an invaluable tool in industries that rely on the performance of optical components. By incorporating ultrasonic vibration technology into their maintenance routines, professionals can ensure the longevity and optimal functionality of their optical devices, ultimately leading to better performance and reliability.
