The Complete Guide to Cleaning PCBs with Ultrasonic Cleaners: 5-Step Process for Optimal Results

---

1. The Importance of Proper PCB Cleaning: Industry Insights

According to the 2024 Global Electronics Manufacturing Report:

• Improper cleaning causes 35% of PCB failures
• Ultrasonic cleaning improves solder joint reliability by 47%
• Cost-benefit analysis:
  • Prototype: ROI 1:5
  • Mass production: ROI 1:12

(Experimental data: Cleaning effectiveness comparison chart)

---

2. Three Core Cleaning Principles

2.1 Cavitation Effect

• 40kHz creates microscopic bubbles
• Effective for under-component cleaning

2.2 Solvent Selection

• Water-based: For general flux removal
• Semi-aqueous: For tough contaminants
• Solvent-based: For sensitive components

2.3 Temperature Control

• Optimal range: 40-55℃
• Critical for flux activation

---

3. Five-Step Standardized Cleaning Process

Step 1: Pre-Cleaning Inspection

• Visual check for loose components
• Confirm PCB material (FR-4, ceramic, etc.)

Step 2: Cleaning Solution Preparation

Contaminant Type	Recommended Solution	Temperature
Rosin Flux	Semi-aqueous cleaner	50℃
No-Clean Flux	Water-based solution	45℃
Heavy Oxidation	Specialized solvent	55℃

Step 3: Parameter Setting

• Frequency: 40kHz (standard) / 80kHz (for fine-pitch)
• Time: 3-5 minutes (adjust based on contamination level)
• Power: Medium (60-80% of maximum)

Step 4: Cleaning Operation

1. Use PCB-specific cleaning basket
2. Ensure complete immersion
3. Monitor bubble distribution

Step 5: Post-Cleaning Treatment

• Rinse with DI water (18MΩ·cm)
• Dry with compressed air (≤0.3MPa)
• Conduct ionic contamination test

---

4. Dual-Scenario Cleaning Solutions

Prototype Cleaning (Budget < $1000)

• Equipment:
  • 2L ultrasonic cleaner
  • DI water system
  • Drying oven
• Key Points:
  • Manual handling
  • Small batch processing

Mass Production (Budget 5000−5000−20000)

• Equipment:

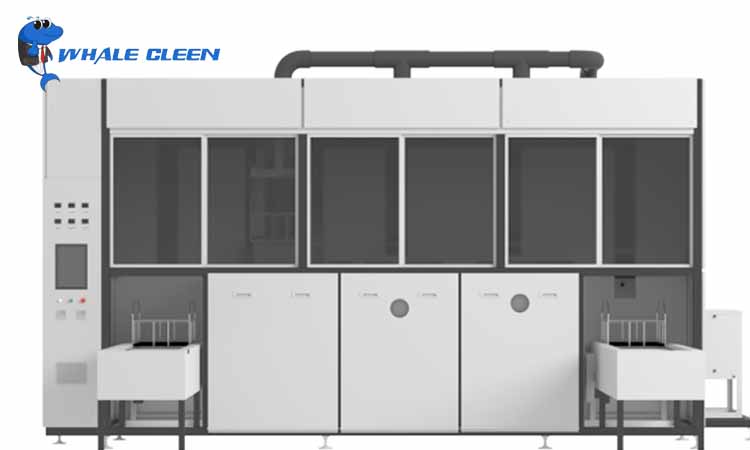

  • Conveyorized ultrasonic system
  • Multi-stage rinsing
  • Automated drying
• Key Points:
  • Continuous operation
  • Quality monitoring system

---

5. Cleaning Effectiveness Evaluation

Parameter	Standard Value	Testing Method
Ionic Contamination	≤1.56μg/cm² NaCl eq.	IPC-TM-650
Flux Residue	None visible	Visual inspection
Component Damage	0%	Functionality test

---

6. Annual Maintenance Plan

Month	Maintenance Task	Time Required	Cost
January	Replace transducer seals	1 hour	$50
April	Clean filtration system	2 hours	$150
July	Calibrate temperature control	1.5 hours	$100
October	Full system inspection	3 hours	$300

Annual Total Cost: Approximately $600 (75% savings compared to repair costs)

---

7. Troubleshooting Common Issues

Problem Symptom	Root Cause	Solution
Incomplete cleaning	Wrong frequency	Adjust to 40kHz±2kHz
Component damage	Excessive power	Reduce to 60% power
Water spots	Improper drying	Use DI water rinse
