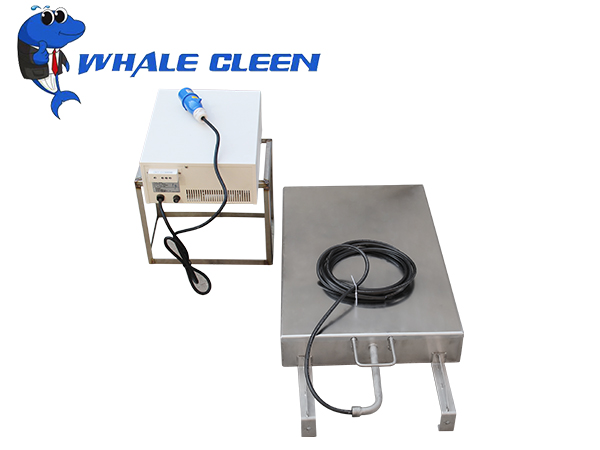

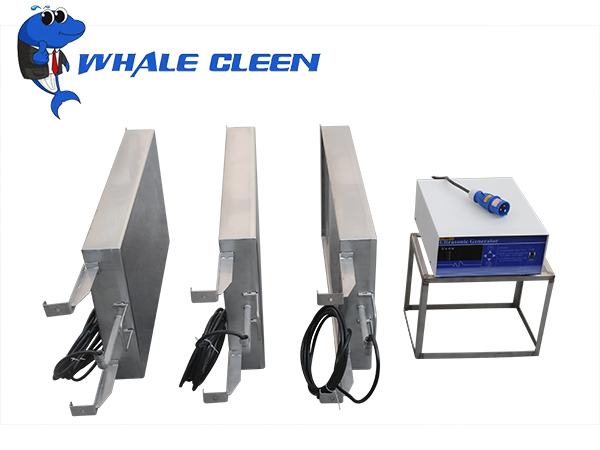

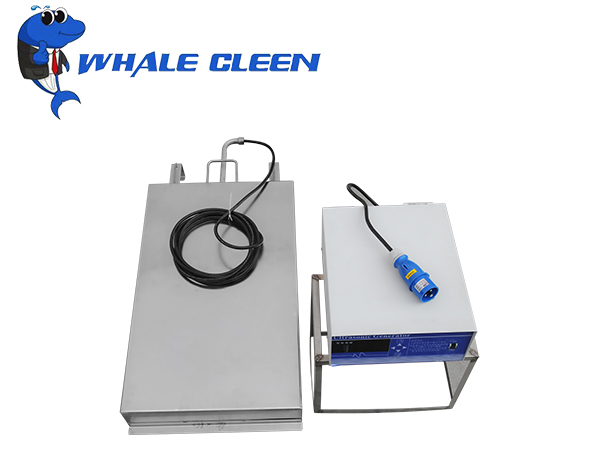

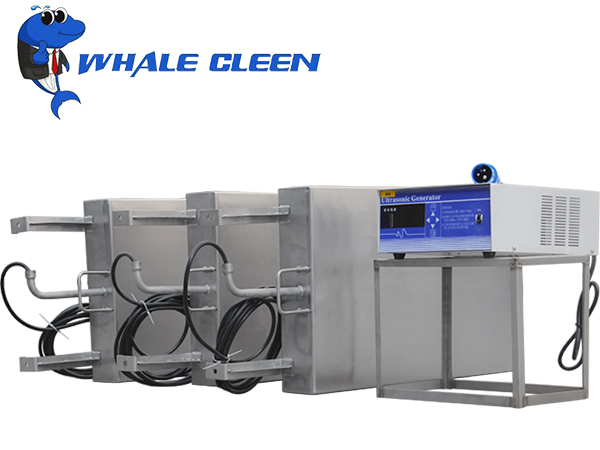

Blue whale drop-in sonic vibrating plate

Ultrasonic Transducer Pack

Product Features:

1. Adopt imported adhesive and key bonding process to ensure the transducer works for a long time at, 120 °C water temperature and is durable;

2. Adopt unique digital ultrasonic generator, for other exciting circuit structure, MCU control, IGBT working mode, ultrasonic output power than the old circuit increase more than 15% , and continuously stepless adjustable, digital display;

3, equipped with ultrasonic reciprocating sweep line,

4, equipped with digital ultrasonic working time 0-60MIN setting, accurate to seconds, to achieve unmanned automatic duty

5, equipped with solvent heating and automatic thermostatic device, and automatic frequency tracking line, so that the load changes and ultrasonic consistent;


Hotline：
+86 15007557067

Online Chat Message
Product Details:
Ultrasonic vibration plate generally customized according to the customer’s tank and specifications, practical, suitable for many occasions, can be made according to the size of the tank. Ultrasonic vibration board external sealing material, usually used 2.0MMSUS304 stainless steel, can also be used SUS316L stainless steel production. The vibration plate is electroplated with chromium to prolong the service life of the product. The application principle of the ultrasonic vibration plate is that the high-frequency oscillation signal from the ultrasonic generator is transformed into high-frequency mechanical oscillation and transmitted to the medium, the ultrasonic wave in the cleaning solvent radiates forward in the cleaning liquid, which makes the liquid flow and produces tens of thousands of micro-bubbles. The micro-bubbles (cavitation nuclei) in the liquid vibrate under the action of sound field, when the sound pressure reaches a certain value, the bubble grows rapidly, then suddenly closes, creating a shock wave when the bubble closes, creating thousands of atmospheric pressures around it, destroying the insoluble dirt and dispersing it into the cleaning solution, when the group particles are covered with oil and stick to the surface of the cleaning part, the oil is emulsified and the solid particles are detached, thus achieving the goal of cleaning the surface of the cleaning part.

Blue whale drop-in sonic vibrating plate
Model Shock plate size（MM） Shock plate material

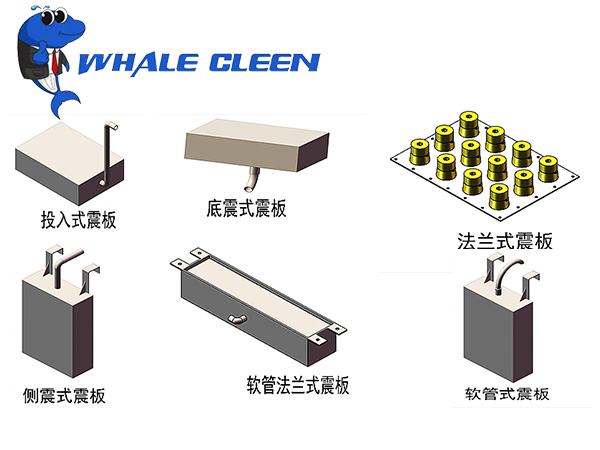

T2.5MM 		Transducer Ultrasonic power（adjustable） Ultrasound frequency（Optional） Time control Generator Installation mode Power supply
LanJ-Z06 280*180*100 SUS304/316L 6pcs 0-300W 28/40KHz 1-99MIN 300W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z12 360*250*100 SUS304/316L 12pcs 0-600W 28/40KHz 1-99MIN 600W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z18 450*350*100 SUS304/316L 18pcs 0-900W 28/40KHz 1-99MIN 900W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z24 500*350*100 SUS304/316L 24pcs 0-1200W 28/40KHz 1-99MIN 1200W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z30-46 460*370*100 SUS304/316L 30pcs 0-1500W 28/40KHz 1-99MIN 1500W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z30-55 550*420*100
 SUS304/316L 30pcs 0-1500W 28/40KHz 1-99MIN 1500W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z30-60 600*250*100 SUS304/316L 30pcs 0-1500W 28/40KHz 1-99MIN 1500W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z36-55 550*450*100 SUS304/316L 36pcs 0-1800W 28/40KHz 1-99MIN 1800W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z36-62 620*500*100 SUS304/316L 36pcs 0-1800W 28/40KHz 1-99MIN 1800W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z36-70 700*400*100 SUS304/316L 36pcs 0-1800W 28/40KHz 1-99MIN 1800W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z36-80 800*350*100 SUS304/316L 36pcs 0-1800W 28/40KHz 1-99MIN 1800W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z36-90 900*300*100 SUS304/316L 36pcs 0-1800W 28/40KHz 1-99MIN 1800W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z36-100 1000*300*100 SUS304/316L 36pcs 0-1800W 28/40KHz 1-99MIN 1800W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z48-60 600*450*100 SUS304/316L 48pcs 0-2400W 28/40KHz 1-99MIN 2400W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z48-75 750*600*100 SUS304/316L 48pcs 0-2400W 28/40KHz 1-99MIN 2400W 1pcs Bottom shock/side hanging Single 220V
LanJ-Z48-80 800*500*100 SUS304/316L 48pcs 0-2400W 28/40KHz 1-99MIN 2400W 1台 Bottom shock/side hanging Single 220V
LanJ-Z48-90 900*400*100 SUS304/316L 48pcs 0-2400W 28/40KHz 1-99MIN 2400W 1台 Bottom shock/side hanging Single 220V
LanJ-Z48-100 1000*400*100 SUS304/316L 48pcs 0-2400W 28/40KHz 1-99MIN 2400W 1台 Bottom shock/side hanging Single 220V
LanJ-Z48-110 1100*350*100 SUS304/316L 48pcs 0-2400W 28/40KHz 1-99MIN 2400W 1台 Bottom shock/side hanging Single 220V
LanJ-Z48-120 1200*300*100 SUS304/316L 48pcs 0-2400W 28/40KHz 1-99MIN 2400W 1台 Bottom shock/side hanging Single 220V



Application:
Blue Whale input ultrasonic shock plate, application industry: electroplating, spraying, hardware, auto parts, rail transit, aerospace, petroleum and coal mines, machinery, electronics, jewelry, optics, medicine, coating and vacuum coating pre-treatment and other related categories. For parts with complex surface shapes, such as grooves, slits, blind holes and deep holes on parts, it has an efficient and rapid cleaning effect. At the same time, it can clean off the oil, rust and oxide on the surface of the parts, and realize one-stop cleaning, disinfection and sterilization.
Application
Before Purchase:

1、Determine the model
You can choose model through consultation. You can also understand the specifications and parameters and choose the model through the website. Our company can customize according to customer requirements. Welcome to the factory for inspection.

2、Inquiry
You can use telephone, online chat, messages, e-mail and other ways to get price and delivery term from sales manager.

3、Sign the contract
With product details and payment methods.

4、Payment
Payment will be made in accordance with the terms of the contract. Timely delivery will be arranged after payment.

5、Acceptance
When you receoved the machine, please check whether the outer packaging and goods are damaged. Also check the product model and quantity, as well as accessories. If the above happens, please take photos and contact with the sales staff.

6、After-sales service
1. Provide door-to-door installation and commissioning, technical personnel free guidance training;
2. After receiving feedback, we will give you response within 12 hours. We will come back to you with the solution within 36 hours;
3. We promise warranty for 18 months and provide to life-long maintenance. So you don’t need to worry about the after sales.
